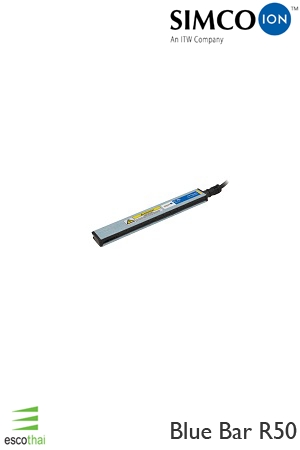

Simco-Ion R50 Blue Bar

The R50 Blue Bar is a super high-output, rugged, shockless static eliminating bar which can be used in almost any application requiring a static bar. The static bar is especially useful for high speed applications and is effective at web speeds of 2500 feet per minute or more. The static bar delivers long range static elimination, and can be located up to 6 inches (and sometimes more!) from the target material.

The R50 Blue Bar is designed for easy cleaning and offers a mounting channel with full length adjustment. The static bar's high voltage cable is metal shielded, which controls EMI and RFI emissions, eliminating interference with external controls and circuitry. The R50 Blue Bar includes a high voltage cable which is permanently attached to the bar.
TheR50 Blue Bar can be powered by the True AC Power Supply, or D167Q/D257Q Power Supply, which must be ordered separately.

The R50 Blue Bar is also available in a moisture resistant version. The Blue Bar MR (moisture resistant) will withstand occasional contact with water, such as splashing or an infrequent washdown when an operator forgets to remove the bar from the wash down area. It will also function in high humidity environments. The Blue Bar MR cannot be immersed in water or subjected to regular washdown.
